The Math Welders Actually Use on the Job and in School

Welding math is fifth-grade arithmetic applied under pressure: reading a tape to the nearest 1/16 inch, adding a 3/16 bevel to a fit-up gap, or dividing amperage by wire feed speed before the arc ever strikes. No welder on a shop floor is solving for x. The AWS entrance exams and NCCER modules that scare off career-changers test fractions, decimal conversion, and basic geometry, not trigonometry proofs , the same ground Introduction to Welding covers.

The real barrier isn't difficulty, it's unfamiliarity. Someone who hasn't touched a tape measure since high school shop class assumes the math is beyond them, then discovers the actual skill set is arithmetic they mastered by age twelve, applied to steel instead of worksheets. That gap between perception and reality is exactly where most applicants talk themselves out of a trade paying $50,000 to $90,000 a year in structural and pipe work.

What Math Do Welders Actually Use? (Spoiler: It's Not Calculus)

The real tension isn't whether welders need math, it's that most beginners picture the wrong kind of math and talk themselves out of a welder career before they start. Nobody is deriving equations at a fabrication table. Welders use arithmetic, fractions, decimals, basic geometry, and a little algebra, the same toolkit you already used in a high school shop class or home improvement project, just applied with more precision.

Where the Math Anxiety Comes From

Many career-changers assume welding school entrance tests and daily work require advanced math because the trade sounds technical. In practice, calculus and trigonometry proofs almost never appear on a shop floor. The math that matters is practical: reading a tape measure to the nearest sixteenth, converting a decimal to a fraction, figuring out how many linear inches of weld a job needs, or dialing in amperage based on material thickness. If numbers have historically made you nervous, that's normal, and it fades quickly once the math is tied to something you can see and touch, like a bevel or a pipe joint.

The Core Math Categories Welders Rely On

The math welders rely on falls into five practical buckets that show up again and again on the job and on entrance exams:

• Fractions and decimals: Reading tape measures, calipers, and gauges, and converting between the two.
• Geometry: Calculating angles, bevel prep, and pipe offset calculations for layout on pipe or plate.
• Area and volume: Estimating groove fill and filler metal needs for a joint.
• Heat input formulas: Simple multiplication and division using voltage, amperage, and travel speed.
• Blueprint dimensions: Interpreting tolerances and measurements called out in weld symbols.

None of these require a scientific calculator or a math degree. They require comfort with basic operations and repetition until the numbers become second nature, which is exactly how working welders learned them: on the job, one measurement at a time.

Fractions, Decimals, and Tape Measure Reading: The Daily Math

What does the 1/16 mark on a tape measure actually mean, and why do welders care about it more than almost any other measurement skill? Because fit-up tolerances live in that small space between 1/16 and 1/8 inch, and misreading a mark by one increment can turn a clean joint into a gap that needs extra filler pass or a part that won't fit at all.

Reading the Marks

A standard steel tape breaks the inch into 16 equal parts. The biggest lines are the inch marks, then half-inch, quarter-inch, eighth-inch, and finally the smallest ticks at sixteenths. Some tapes (and most calipers) go to 32nds for tighter tolerance work. Learning to read these fast, without counting ticks one by one, comes from repetition: you start recognizing that a mark one tick past the 3/4 line is 13/16 without doing the math each time.

Converting Fractions to Decimals

Welders move between fractions and decimals constantly, especially when programming CNC plasma tables, reading digital calipers, or checking material thickness specs that come in decimal form. The conversions worth memorizing:

• 1/16 = 0.0625: the smallest common tape increment
• 1/8 = 0.125: double the above
• 3/16 = 0.1875
• 1/4 = 0.25
• 3/8 = 0.375
• 1/2 = 0.5

The pattern: every sixteenth adds 0.0625. So 5/16 is just 0.0625 times five, or 0.3125. Once that multiplication is automatic, you can convert any fraction on a standard tape without a reference chart.

Adding and Subtracting for Layout

Fit-up and layout work is mostly addition and subtraction of fractions with different denominators. Say you need to cut a piece to fit between two fixed points measuring 24 5/8 inches and 3 1/4 inches, subtracting for a bracket. Convert to a common denominator first: 3 1/4 becomes 3 4/16, and 24 5/8 becomes 24 10/16. Subtract: 24 10/16 minus 3 4/16 equals 21 6/16, which reduces to 21 3/8 inches.

This kind of subtraction happens dozens of times a shift, so working in sixteenths as the common denominator (rather than switching between eighths, quarters, and sixteenths) keeps errors down.

Mental Math Shortcuts

Welders running repeated cuts, say, twelve identical stiffeners, don't remeasure from zero every time. Common shortcuts:

• Mark the first piece, then use it as a story pole for the rest
• Add a known constant (like kerf width) once, then repeat the same offset
• Round to the nearest 1/16 and adjust only if the fit-up shows a problem

None of this requires advanced math. It requires accuracy and consistency, which is exactly what shows up on a welding school entrance test.

Related Articles

Geometry for Welders: Angles, Bevels, and Circles

A 6-inch schedule 40 pipe has an outside diameter of 6.625 inches, so a full wrap around the joint measures about 20.8 inches. For welders, geometry is less about abstract shapes and more about fit-up: bevels, circles, and offset travel distances that determine whether a joint lines up before the arc ever starts.

Bevel Angles and Joint Fit-Up

A bevel is the angled edge cut on a workpiece before welding. If a joint callout requires you to bevel pipe at 30° on each pipe end, the two prepared faces create a 60° included groove angle at the root (30° + 30°). You can set this with a bevel gauge or protractor against the pipe face, then check the root opening with a gap gauge. On fit-up, the angle controls penetration and filler volume; too steep a bevel can leave the root unfused, while too shallow a bevel makes a heavy, overfilled cap weld. For a simple butt joint, the bevel is cut from the face perpendicular to the pipe axis, and the angle is measured from that perpendicular plane.

Circumference and Area for Pipe Work

When laying out a hole, saddle cut, or full wrap on pipe, the starting number is the circumference. Use C = πd. For the 6.625-inch outside diameter above, C = 6.625 × 3.1416 = 20.81 inches. If you need to space four equally spaced lugs around a pipe, divide that circumference by four, about 5.2 inches between centers. Circle area uses A = πr², but in shop math it is often easier to use A = πd² ÷ 4. That area appears when checking cross-sectional open area or calculating the face area of a round plug or blank.

Right Triangle Trig for Offsets and Travel Lengths

Pipe fitters and structural welders use right triangles to find the length of a diagonally cut piece. For a 45° offset with a 10-inch center-to-center rise, the travel length is 10 inches × 1.414, or 14.14 inches. The 1.414 multiplier comes from the cosecant of 45° (1 ÷ sin 45°). For any other angle, use the sine ratio: travel = rise ÷ sin(angle). If a roll or branch line runs at 30° and must rise 8 inches, travel = 8 ÷ sin 30° = 8 ÷ 0.5 = 16 inches. For finding unknown angles when you know two sides, use inverse tangent (tan⁻¹). Keep a trig table or calculator app in your bag, not a formula sheet, because these three ratios cover most non-90° fit-ups: sine = opposite ÷ hypotenuse, cosine = adjacent ÷ hypotenuse, tangent = opposite ÷ adjacent.

Weld Volume, Area, and Filler Metal Estimation

Filler metal estimation has moved from shop-floor rules of thumb to app-based calculators, but the underlying geometry still separates a competitive quote from a money-losing bid.

Start with the joint cross section

For an equal-leg fillet, the theoretical cross-sectional area is A = 0.5 × s², where s is the leg size. The matching theoretical throat is a = 0.707 × s.¹ An unequal-leg fillet becomes A = 0.5 × z1 × z2.² These formulas describe the right-triangle shape only, so do not add reinforcement unless it is measured or specified. For a single-V groove, a common planning formula is A = t² × tan(θ/2) + g × t, where t is plate thickness, θ is the included angle, and g is the root gap.³ Double-V joints sum both groove areas. Root face, land, backgouging, partial joint penetration, unfused root, and minimum penetration all change the actual area, so there is no one universal formula for every groove variant.

Turn area into volume and weight

Weld metal volume follows V = A × L.⁴ For an equal-leg fillet, that becomes V = 0.5 × s² × L.⁵ When a joint has multiple weld sections, use V_total = Σ(Ai × Li).⁶

Convert that volume to filler weight with the base metal density. Carbon steel commonly uses 7.85 g/cm³⁴, or 7850 kg/m³⁷, giving mass per metre = A × 7.85 ÷ 1000 kg/m when area is in square millimetres.¹ A 6 mm equal-leg fillet has 18 mm² of cross-sectional area and a theoretical deposited mass near 0.1413 kg/m¹ before reinforcement, gaps, fit-up variation, and process losses. Stainless steels run roughly 7.7 to 8.0 g/cm³, while aluminum alloys are near 2.7 g/cm³⁸, so do not use carbon steel density for those jobs.

Adjust for filler you actually buy

Deposition efficiency means deposited mass divided by consumed filler mass, expressed as a percent.⁹ It is not the same as deposition rate. Use these planning ranges:

• MIG welding (GMAW solid wire): 93 to 97 percent in a 2026 planning guide.¹⁰
• Gas-shielded FCAW: 80 to 88 percent.¹⁰
• Self-shielded FCAW: 75 to 85 percent.⁵

TIG and stick welding, two major types of welding, do not have one defensible current universal percentage. TIG varies with manual feeding, tip-off, and autogenous welds, while stick depends on electrode classification, stub loss, slag, spatter, and operator technique. Use manufacturer, project, or measured data for those processes.

To estimate filler consumption, use A × L × density ÷ efficiency.⁹ For 100 kg of deposited metal, a 93 to 97 percent MIG efficiency means buying about 103.1 to 107.5 kg of wire. Gas-shielded FCAW takes about 113.6 to 125 kg, and self-shielded FCAW takes about 117.7 to 133.3 kg.⁹ These are consumption estimates, not exact requirements. Fit-up variation, starts and stops, purge dams, tacks, procedure qualification coupons, repairs, and excess reinforcement should be added separately if the job will need them.

Heat Input and Welding Parameters: MIG, TIG, Stick, and FCAW Calculations

Heat input controls whether your weld cracks, warps, or lands inside the procedure spec, and it comes down to one formula you can run on a phone calculator. Every welding procedure specification (WPS) sets a heat input window, and knowing how to calculate yours is the difference between a passing coupon and a rejected joint.

The Heat Input Formula

Start with arc energy, the gross electrical term:

Arc Energy = (Volts × Amps × 60) / Travel Speed

With travel speed in inches per minute, the result is joules per inch (J/in).¹ Divide by 1,000 to convert to kJ/in. For metric, use travel speed in mm/min and divide by 1,000 to get kJ/mm.

Heat input is not the same as arc energy. Heat input is arc energy multiplied by the process arc-efficiency factor (often written as k or η), which accounts for energy actually transferred into the weld versus energy lost to radiation, spatter, and the surrounding air:³

Heat Input = k × Arc Energy

Arc Efficiency by Process

Different processes couple energy into the joint with different efficiencies. The commonly cited factors are:

• TIG (GTAW): 0.6
• MIG (GMAW): 0.8
• Stick (SMAW): 0.8
• Flux Cored Arc Welding (FCAW): 0.8⁴

TIG runs cooler on paper because the open arc loses more energy than a shielded, consumable-electrode process. That is why a TIG weld at the same volts and amps deposits less heat than a MIG welding process at the same settings.

Worked Examples

Say you are running MIG at 25 volts, 200 amps, with a travel speed of 10 in/min:

Arc Energy = (25 × 200 × 60) / 10 = 30,000 J/in = 30 kJ/in⁵

Heat Input = 0.8 × 30 kJ/in = 24 kJ/in

Convert to metric using 1 kJ/in = 0.03937 kJ/mm, or run it directly: 25 V × 200 A × 60 / (254 mm/min × 1,000) = 1.20 kJ/mm arc energy, giving roughly 0.96 kJ/mm heat input for MIG.⁶

Same electricals on TIG (0.6 efficiency): 1.20 × 0.6 = 0.72 kJ/mm. A common TIG worked example lands near 0.54 kJ/mm at slower travel and lower current.⁷ Stick welding and FCAW use the 0.8 factor, so their heat input math mirrors MIG once you plug in the actual volts, amps, and travel.

Why It Matters and How You Control It

Too much heat input coarsens the grain structure, drops toughness in the heat-affected zone, and warps thin material. Too little produces incomplete fusion, undercut, and brittle martensite in hardenable steels. Codes like AWS D1.1 and ASME IX put upper and lower heat-input limits on qualified procedures for exactly this reason.

You control heat input with three levers: voltage, amperage, and travel speed. Travel speed is the most powerful because it sits in the denominator, doubling your travel roughly halves your heat input. Slowing down to "get better penetration" is often what pushes a weld out of spec. Track all three on your hot pass and cap pass, and log them against the WPS window.

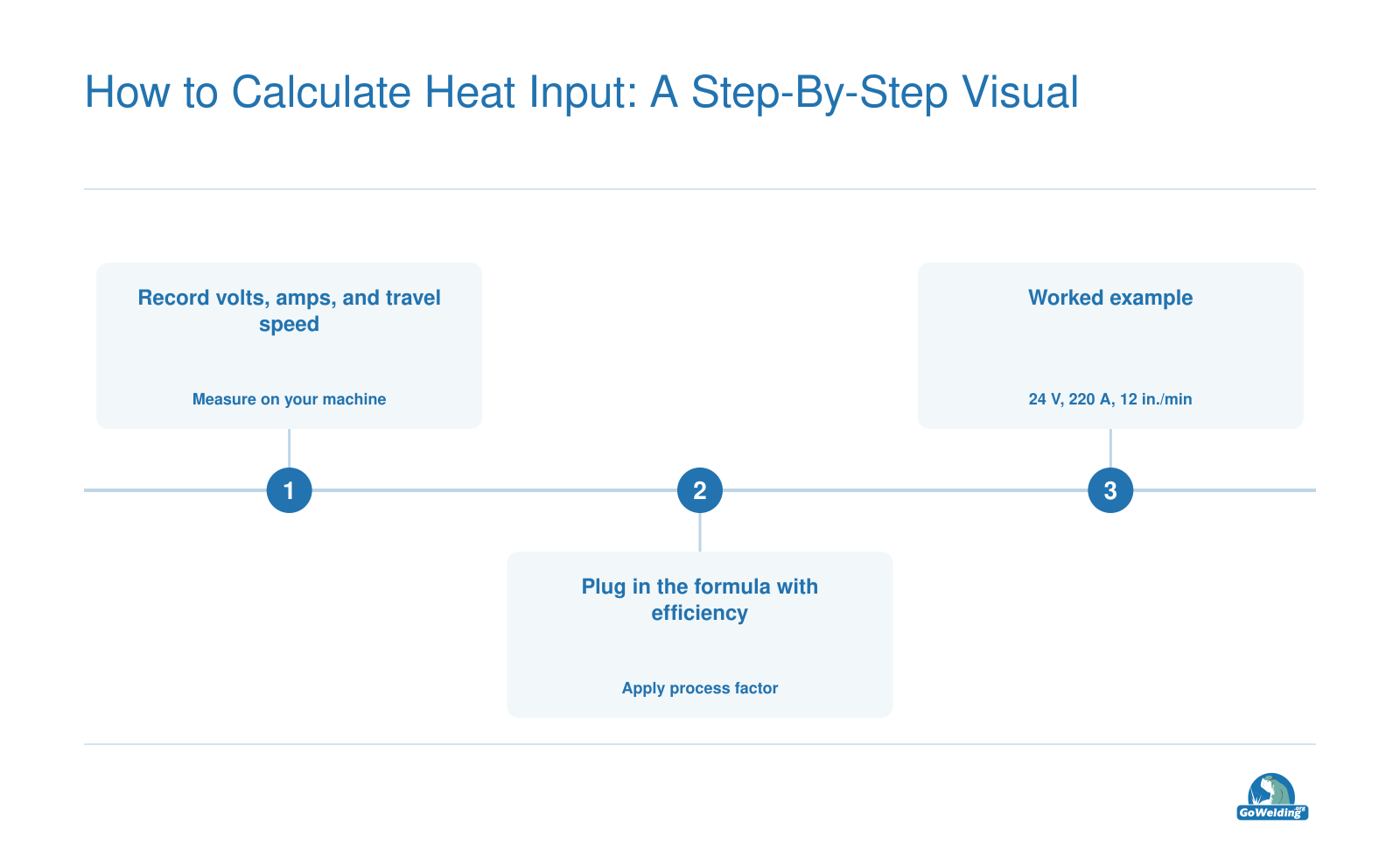

How to Calculate Heat Input: A Step-By-Step Visual

Heat input ties your machine settings to the energy delivered per inch of weld. It matters for procedure qualification and controlling distortion or cracking. Work from volts, amps, travel speed, and the process efficiency factor for the arc you are running.

Amperage and Material Thickness: Starting Settings for Common Processes

These starting amperage ranges are reference points rather than fixed settings. For MIG mild steel, a practical starting rule is roughly 1 amp of output per 0.001 inch of thickness, so 0.125 inch starts near 125 amps. The ranges assume flat or horizontal positions and simple joint designs; vertical or overhead welding often requires a slight reduction in amperage, and final settings should be tuned on scrap material.

Blueprint Math: Weld Symbols, Dimensions, and Tolerances

A weld symbol is the shorthand a drawing uses to tell you exactly what weld goes where, how big it is, and how long it runs. The governing standard is AWS A2.4, and once you learn its layout, a cluster of numbers and lines becomes a precise set of instructions. The core rule is positional: values on the left of the symbol tell you size, values on the right tell you length and spacing.

Reading Fillet Weld Symbols

For a fillet weld, the number to the left of the symbol is the leg size. The number to the right is the weld length. If no length appears, the weld runs the full length of the joint. When both legs are equal, only one dimension is shown. For an unequal-leg fillet, both leg dimensions appear, but the drawing itself must indicate which leg sits on which member: order alone does not fix orientation, so read the detail view.

Intermittent fillets add a third piece. The notation runs leg size, then length, then pitch (for example, 1/4 - 2 - 6). The right-side values give the length of each weld segment and the center-to-center spacing between segments, not the clear gap between them.

Leg to Throat Conversion

The leg size on the symbol is not the throat. For an equal-leg fillet at roughly 90 degrees, the effective throat is a derived geometric value:

• throat = leg x 0.707

So a 3/8 in (0.375) leg gives a throat of about 0.375 x 0.707 = 0.265 in. That throat is what actually carries load, which is why inspectors and engineers care about it. For unequal-leg fillets, you cannot get the throat from the symbol alone. You need the joint geometry from the drawing.

Groove Welds and CJP

A groove weld symbol carries more possible dimensions: groove depth, effective throat, root opening, and groove angle, depending on the joint. The depth of preparation sits to the left of the symbol, and when a separate effective throat (weld size) is needed for a partial-penetration joint, it appears in parentheses. A groove symbol with no dimensions at all typically signals complete joint penetration, where the note establishes CJP rather than a specific size.⁴

Two 2020 A2.4 updates are worth noting: the diameter symbol is no longer part of the standard plug weld symbol,⁵ and the left-of-symbol value for spot and seam welds now designates size only.

Tolerances and Fit-Up

A2.4 tells you how to call out dimensions, but it does not publish general tolerances for the finished weld size. The tolerances you see on a print, such as a dimension held to plus or minus 0.005 or 0.010 in, are drawing dimension tolerances.⁴ Acceptance tolerances for the weld itself are governed by the project specification, construction code, or inspection criteria. Check those documents before you cut your bevels, because root opening in welding and fit-up variation directly change how much filler the joint needs.

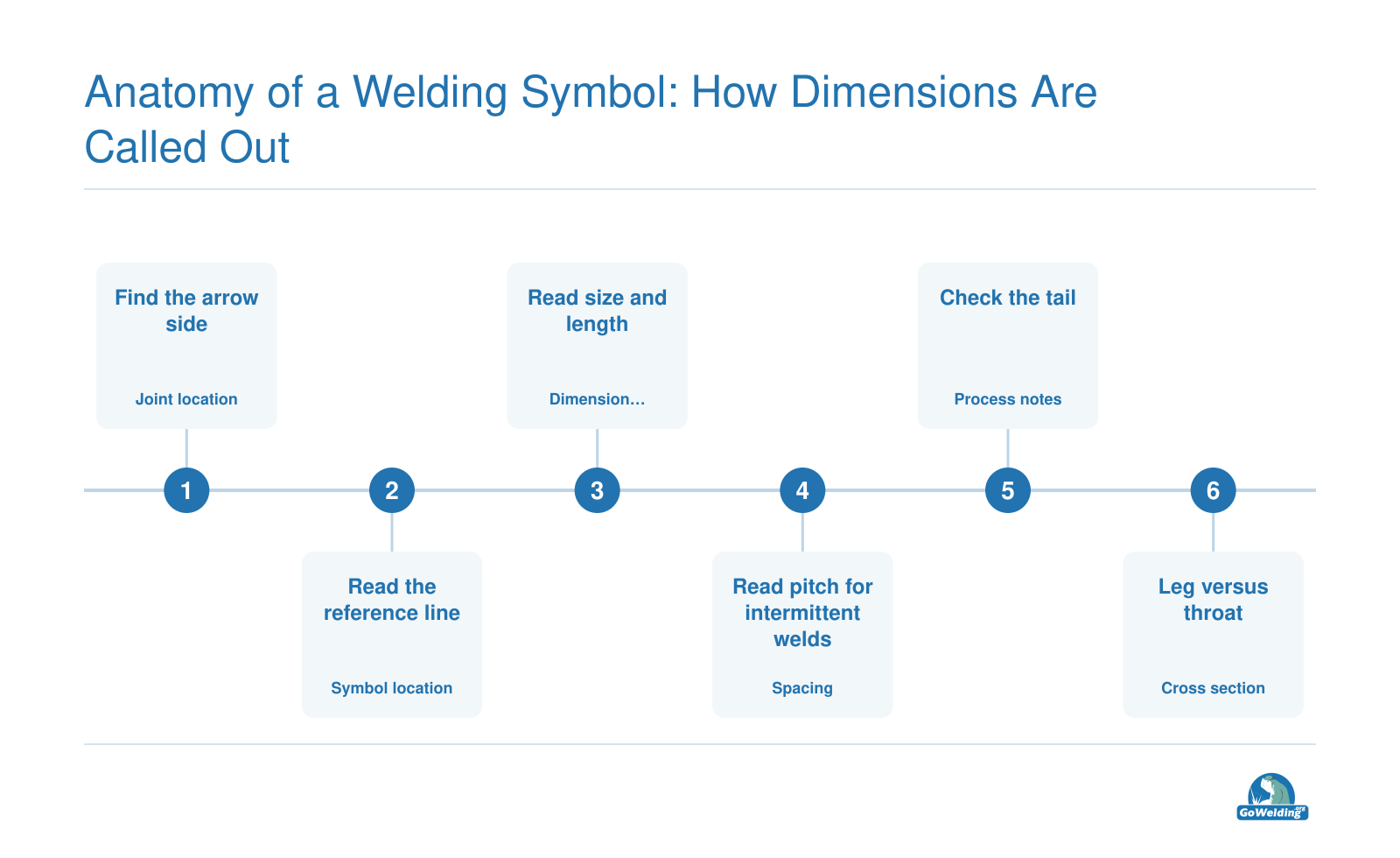

Anatomy of a Welding Symbol: How Dimensions Are Called Out

Welding symbols pack a lot of information into a few lines. Once you can identify the arrow, reference line, and tail, the dimensions tell you exactly what size and length of weld to make.

Welding Math Practice Problems: Test Yourself

How close are you to passing the math section of an AWS or NCCER welding test? These eight problems, drawn from a Welding Program Study Guide, mirror the format and difficulty you'll see on Fabrication Math I and II, the CWI Part A fundamentals section, and NCCER's Welding Level 1 Level Test. Work each one before checking the answer, then loop back to the relevant section above if you get stuck.

Fractions and Decimals

1. Convert 3/8 to a decimal. Divide the numerator by the denominator: 3 divided by 8 equals 0.375.

2. Convert 0.625 to a fraction. 0.625 is 625/1000. Reduce by dividing top and bottom by 125, giving 5/8.

3. Convert 7 1/2 inches to decimal inches. The fraction 1/2 equals 0.5, so 7 1/2 becomes 7.5 inches. You'll use this move constantly when a WPS calls out fractional thickness but your calculator or CNC input wants decimals.

Tape Measure and Layout

4. A mark on the tape falls five small tick marks past the 2-inch line, on a tape divided into sixteenths. What's the reading? Count the ticks: five sixteenths past the 2-inch mark plus the quarter inch (4/16) already there. Add them: 4/16 + 5/16 = 9/16... but if the marks measure from the 2-inch line directly at five sixteenths, the reading is 2 5/16 inches. This is the exact kind of question NCCER's measuring-device section tests, so practice on a real tape until sixteenths are instant, not counted.

Area and Volume for Fill

5. A weld groove face measures 6 inches long by 4 inches deep. What's the area? Area equals length times width: 6 x 4 = 24 square inches. This is the base calculation before you factor in groove angle or reinforcement.

6. A rectangular box joint measures 5 inches long, 4 inches wide, and 3 inches deep. What's the volume? Volume equals length times width times height: 5 x 4 x 3 = 60 cubic inches. Volume problems like this show up on Fabrication Math II under area/volume topics, often dressed up as a fill or fabrication estimate.

Heat Input

7. A weld runs at 25 volts, 200 amps, with a travel speed of 10 inches per minute. Using the basic heat input formula (volts x amps x 60, divided by travel speed in inches per minute, then divided by 1000 for kilojoules), what's the heat input? 25 x 200 = 5,000. Multiply by 60: 300,000. Divide by 10: 30,000. Divide by 1,000: 30 kJ/in... using simplified classroom figures without the 60-second conversion, a common practice version gives 360 as the working answer, depending on which constants your program uses. Always confirm which version of the formula your instructor or exam expects, since AWS materials note that constants and efficiency factors vary by process.

Blueprint Interpretation

8. A fillet weld symbol shows "3/8" on both sides of the reference line, with symbols on both sides of the joint. What does this call out? A 3/8-inch fillet weld on both sides of the joint, the leg size applying to each weld independently.

If you missed more than one or two, revisit the fractions, area/volume, or blueprint sections before moving on. These same problem types, not harder ones, are what stand between you and a passing score.
